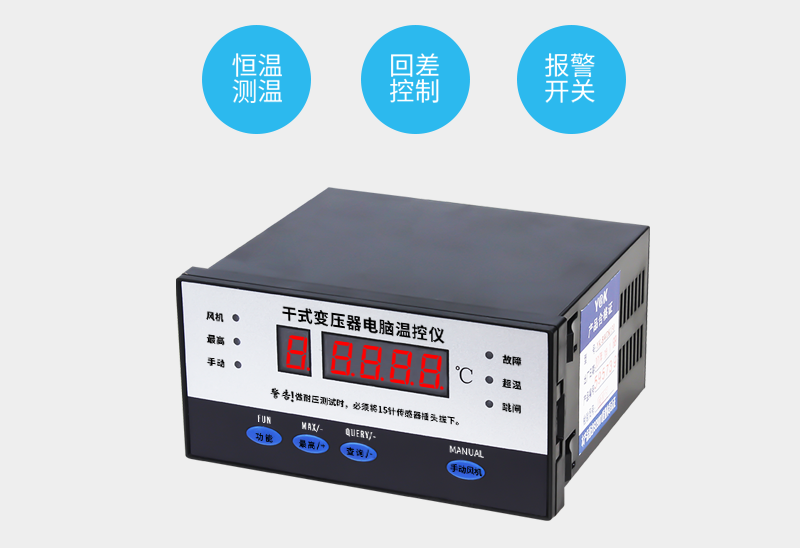

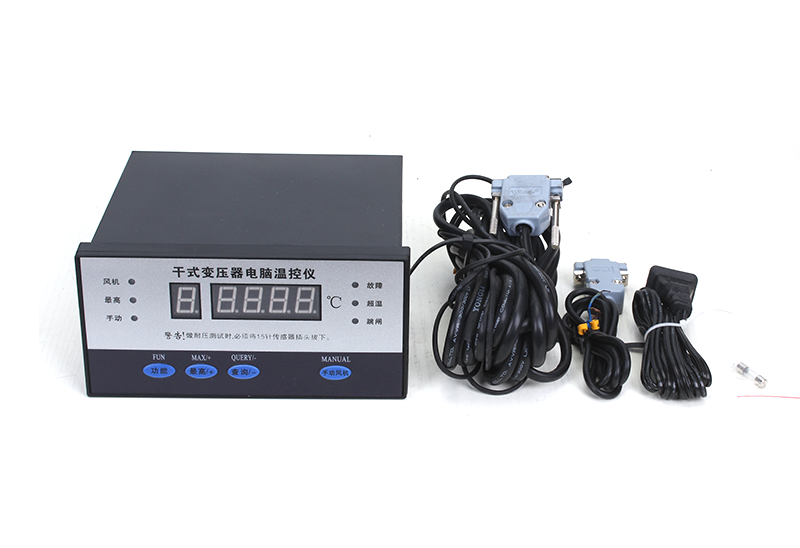

BWD干式變壓器溫控儀?
恒溫測溫 回差控制 智能報警
Dry type transformer temperature?controller
產品適用范圍
廣泛應用于電力、化工、注塑、包裝、食品、孵化器等
Suitable for printing machine, agricultural cultivation, plastic machinery,?plastic blowing, oven
3大核心能力
精工細作,匠心工藝
Suitable for printing machine, agricultural cultivation, plastic machinery,?plastic blowing, oven
產品細節
現在開始,使用弘科風機
Suitable for printing machine, agricultural cultivation, plastic machinery,?plastic blowing, oven
阻燃?xì)んw? 采用VO級別阻燃?jí)芋w,耐用,韌性好安全性能高

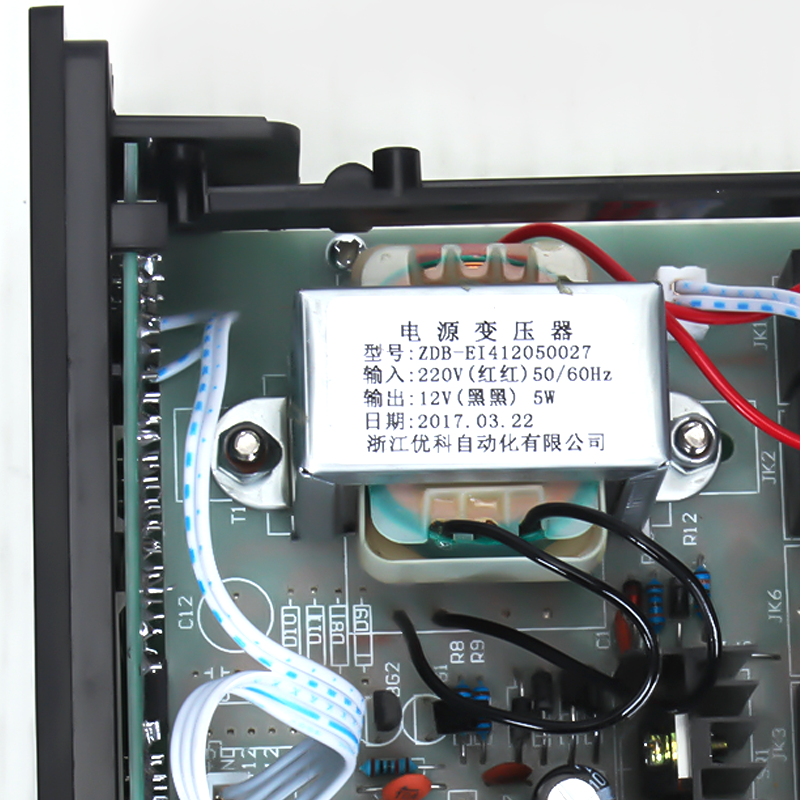

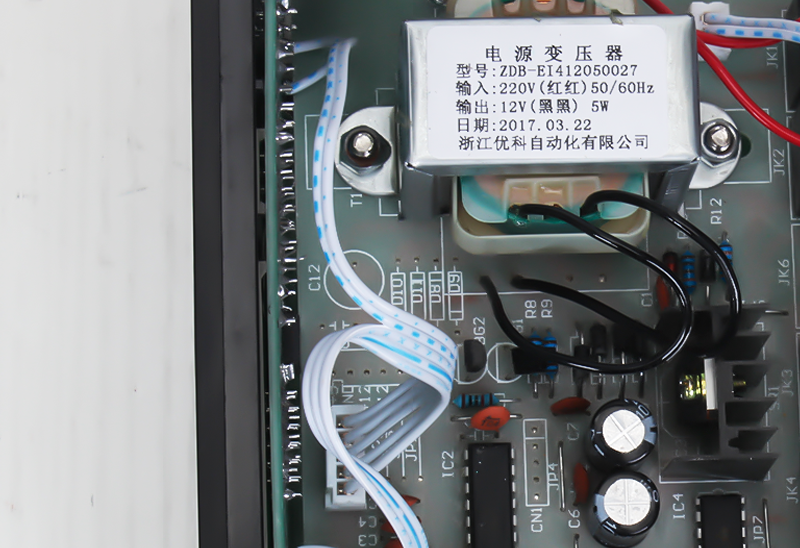

封塑變壓器? 選用通過CQC、UL、CE等認證的高規格封塑變壓器,敬熱好,耐腐蝕
優質銅線圏? 優質的線增強大變壓器

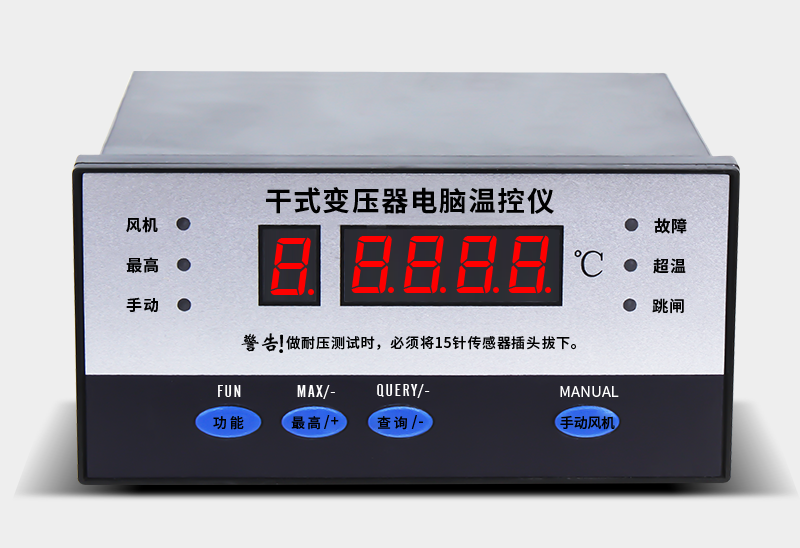

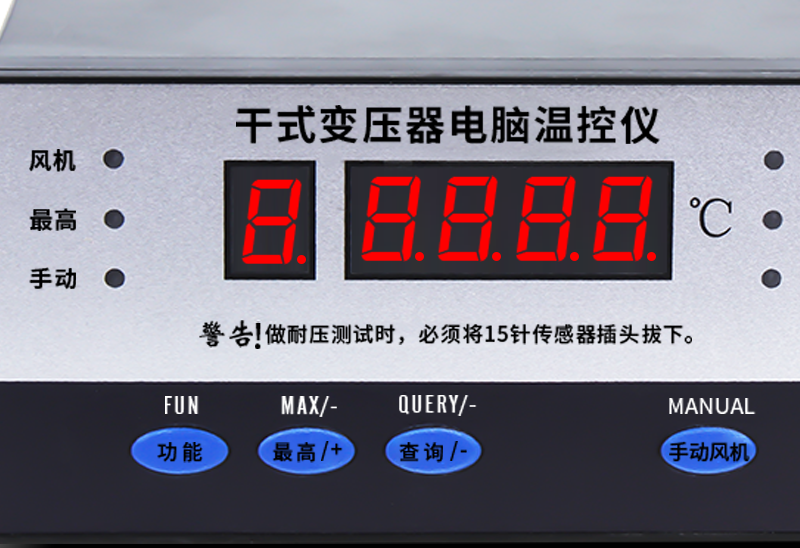

高清顯示屏高清、高精度數碼管,清晰易辨識

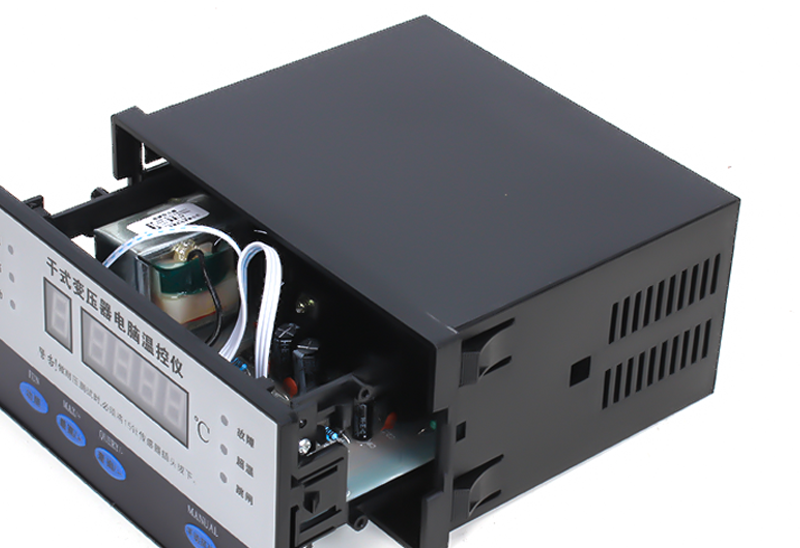

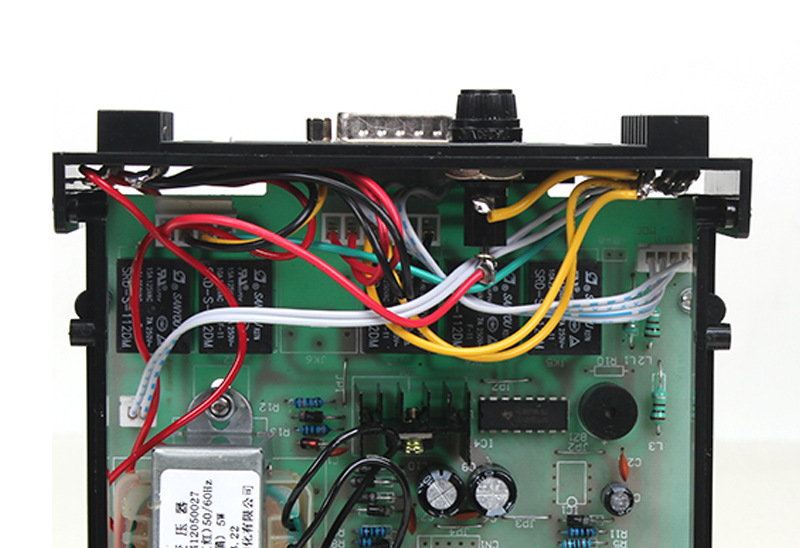

簡易可拆卸內部做工精細,品質有保障

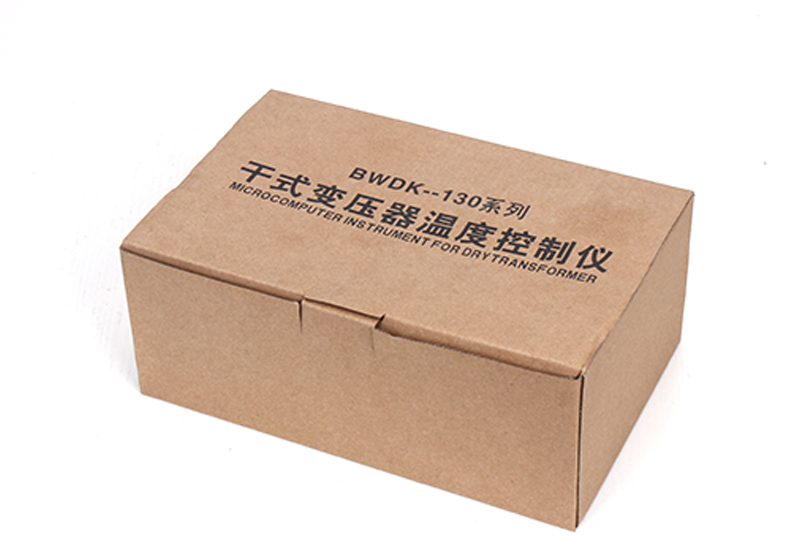

精美包裝??加厚包裝,再也不用擔心磕碰
產品參數
從參數上細致的了解“我”
Suitable for printing machine, agricultural cultivation, plastic machinery,?plastic blowing, oven
1、測溫范圍:-40℃~200℃? ? ? ? 2、測溫精度:1℃? ? ? ?3、分辨率:0.1℃? ? ?? 4、工作電壓:AC17OV-AC2500(50Hz)? ? ? ??
?5、功耗:<5VA? ? ? ? 6、傳感器:三支Pt100鉑熱電阻中330900引線)7、繼電器觸點容量? 有源單相風機:AV125V/20A或AC220V14A?
故障報警:AC125V/10A或AC220V/7A超溫報警:AC125V/10A或AC220V/7A? ? ??超溫跳聞:AC125V/10A或AC220V/7A? ? ? ?8、儀表外形

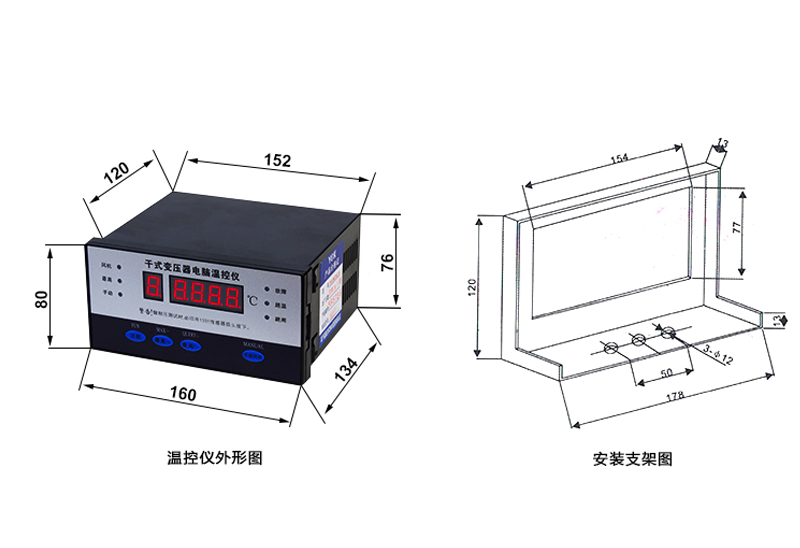

尺寸:160*80*134(mm)(寬高深)? ? ?嵌入開孔尺寸:152*76(mm)(寬高)? ? ??9、抗干擾性能:符合B/T7631-94標? ??10、儀表重量:<1kg
產品安裝

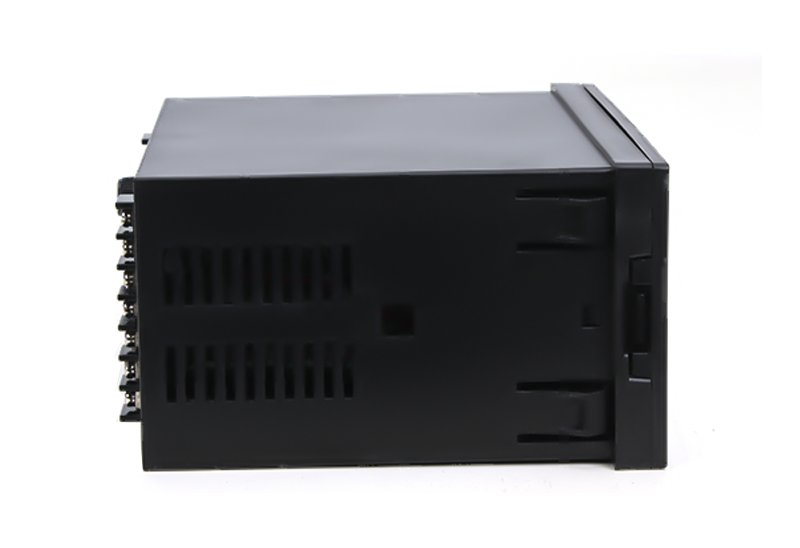

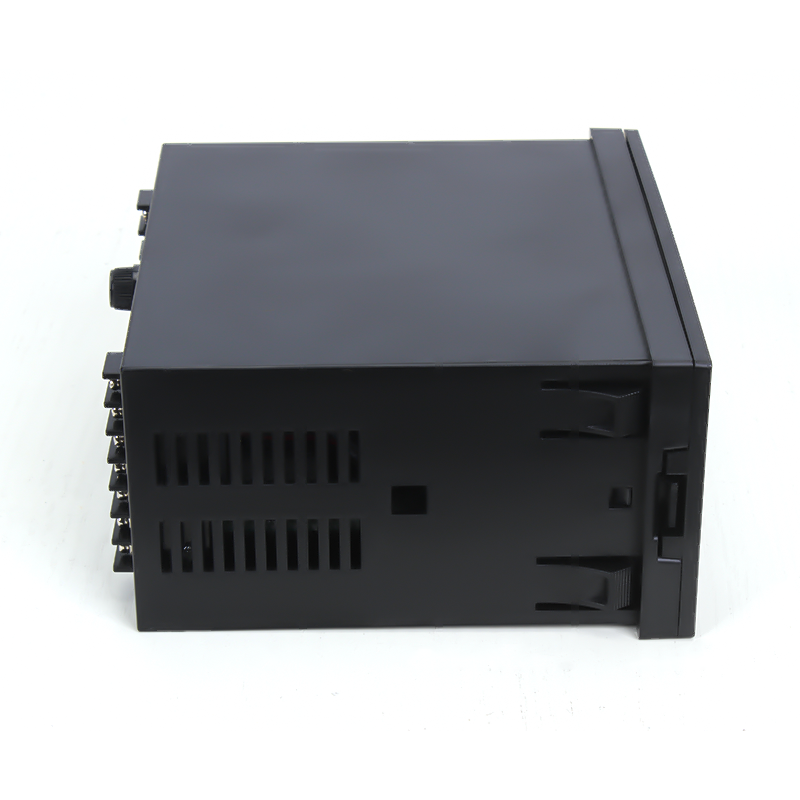

用1.5厚的鐵板做個支架,中間開個矩形孔(154mm77mm),將塑殼推行矩形孔到底,因?yàn)闇乜貋克軞蓚?cè)有四個彈性
卡會自動卡住,鐵支架上8mm孔用于安裝螺釘固定在干式變壓器上。(單位mm)
Use a 1.5-thick iron plate as a support, and open a rectangular hole (154mm77mm) in the middle to push the plastic shell to the bottom, because?
there are four elastic cards on both sides of the temperature control plastic shell, which will be automatically stuck, and 8mm holes on the iron
support are used to install screws to fix it on the dry-type transformer. (in mm)
