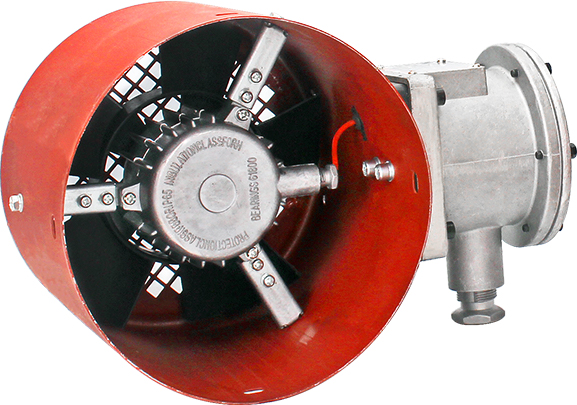

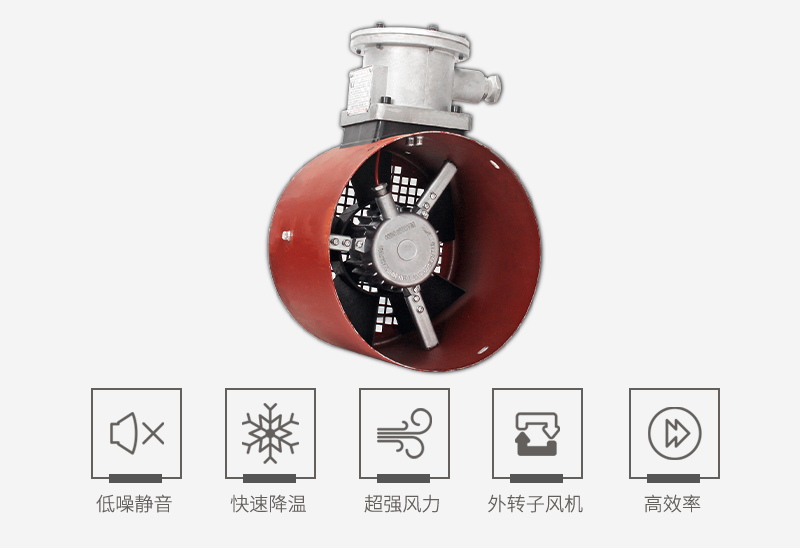

變頻電機散熱風扇
純銅電機? 碳鋼外殼? 金屬支架
mooth white maple wood,with delicate appendix,appears graceful,healthy and natural characferistics,fullyexpress the poetic style of modeern living.
我們的核心工藝
Our core process

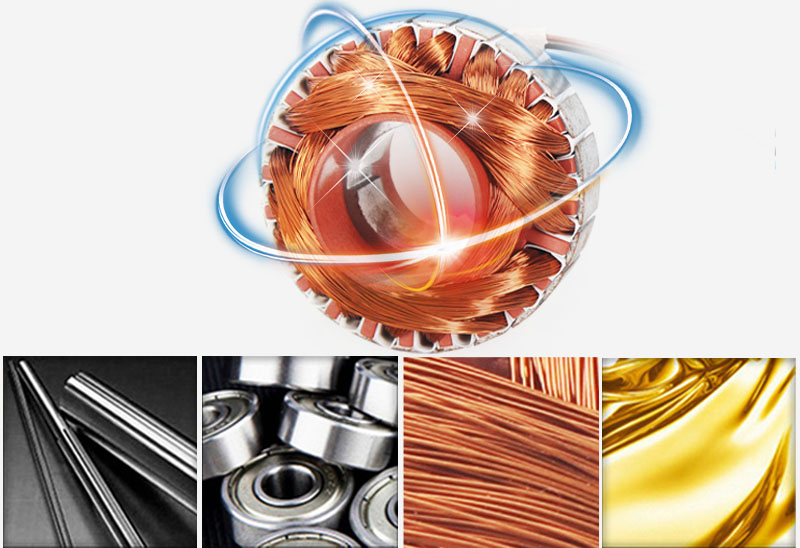

外轉子無刷純銅電機
機芯采用100%優質銅線，永磁無刷電機，具有轉速快、風量大、震動小、低噪聲，性能可靠，高效穩定。
The movement adopts 100% high-quality copper wire and permanent magnet brushless motor, which has the advantages of fast speed,
large air volume, small vibration, low noise, reliable performance, high efficiency and stability.

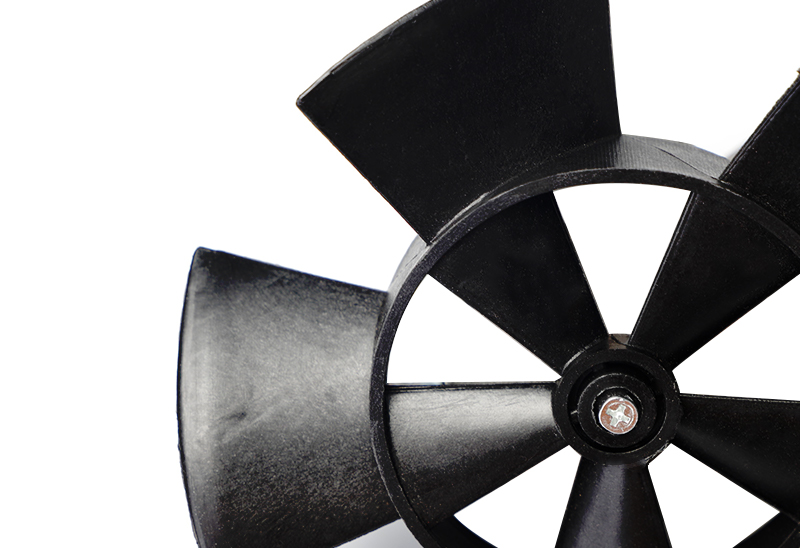

ABS扇葉
扇葉采用加厚高硬度碳鋼材質，冷沖壓成型，強度高不易變形，不易脫落 ，風量大，噪音低，耐腐蝕，不易生銹
The fan blade is made of thickened high hardness carbon steel, cold stamping, high strength, not easy to deform, not easy to fall off,large air volume, low noise, corrosion resistance and not easy to rust

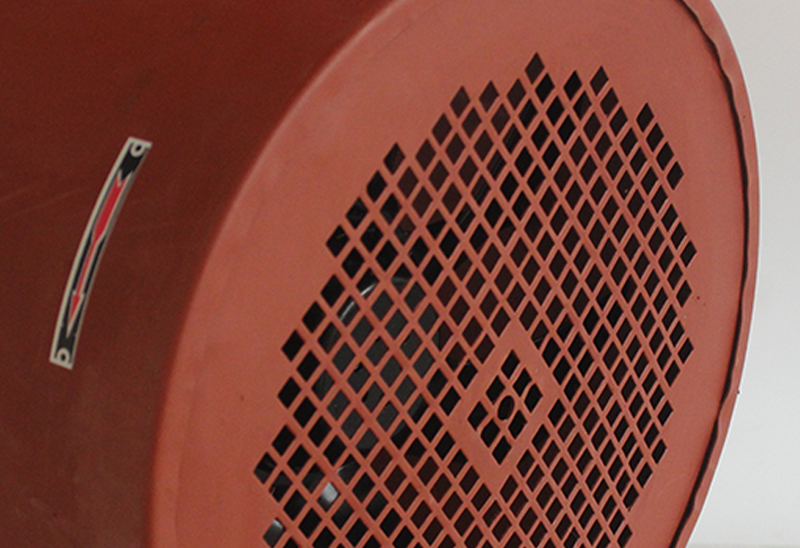

碳鋼外殼
碳剛外殼噴漆碳鋼外殼，表面先進高溫噴漆處理，耐磨損，耐沖擊，抗腐蝕，硬度高，抗震防摔。
Carbon steel shell painted carbon steel shell, with advanced high-temperature paint treatment on the surface, wear resistance,impact resistance, corrosion resistance, high hardness, earthquake resistance and fall prevention.

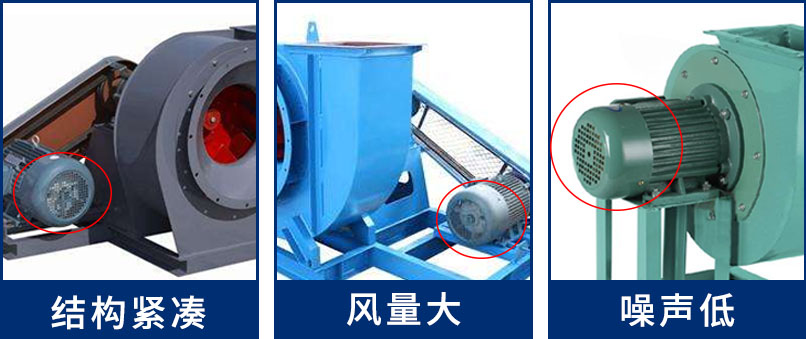

使用場景
主要適應于變頻電機通風散熱之用
It is mainly suitable for ventilation and heat dissipation of variable frequency motor
G系列變頻調速電機用軸流風機，由風罩、電動機、風葉三部分組成 。外轉子結構電機其風葉緊固在電機外轉子上，具有結構緊湊、噪聲低、風量大、安裝方便等優點。

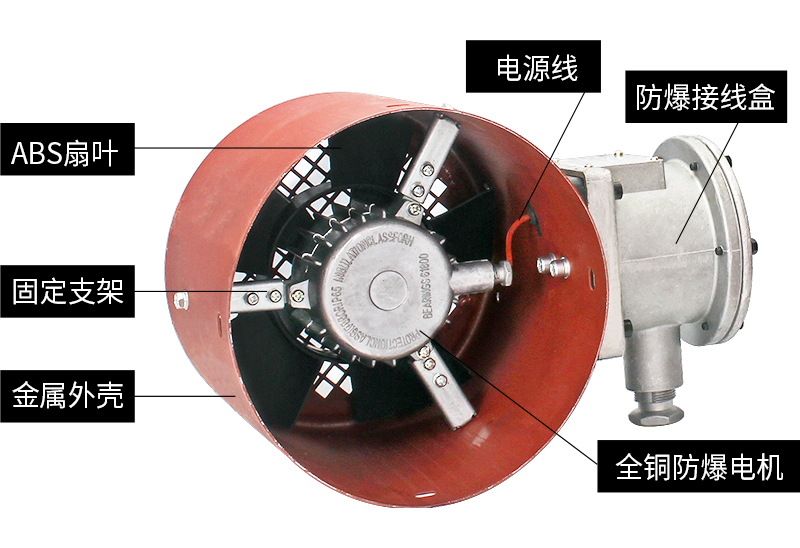

寶貝結構
主要由扇葉、電機、支架、電源線等組成
It is mainly composed of fan blade, motor, support, power line, etc
型號挑選
請根據您的變頻電機來選擇風機
Please select the fan according to your variable frequency motor

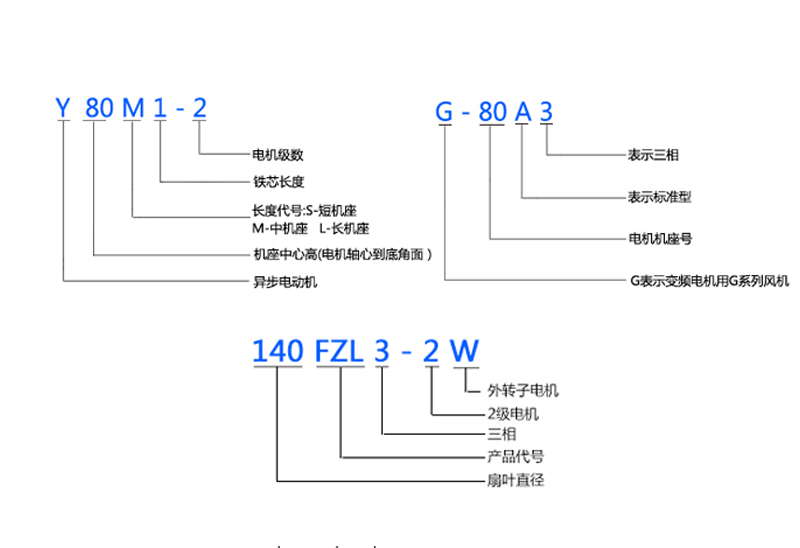

第一步：先確認電機機座號? ? 第二步：找到相應的G型電機? ?第三步：核對G型風機的內部電機
如Y80M1-2配G80A,G80A配140FZL3-2W,親一定要認真核對功能參數，外形尺寸是否合適

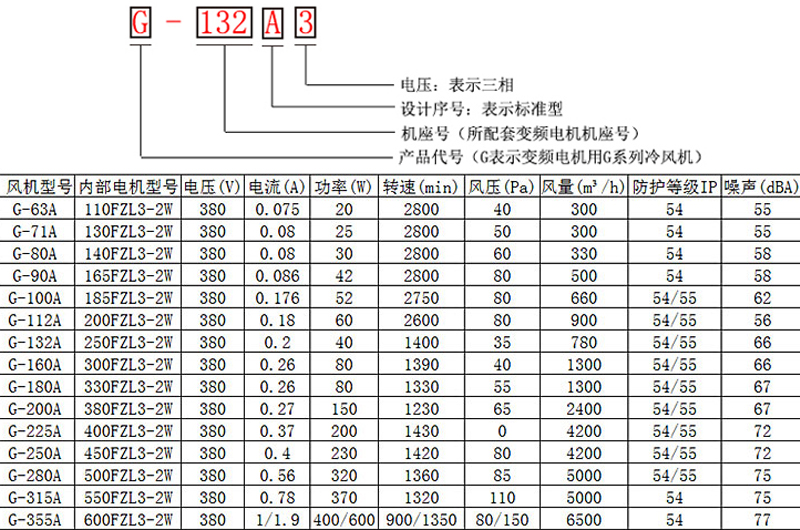

產品參數
產品詳細參數 信息一覽無余
Detailed product parameter information at a glance
如Y80M1-2配G80A,G80A配140FZL3-2W,親一定要認真核對功能參數，外形尺寸是否合適
注明：常規款為380,220V需另加10%；B型加長需另外加15%！

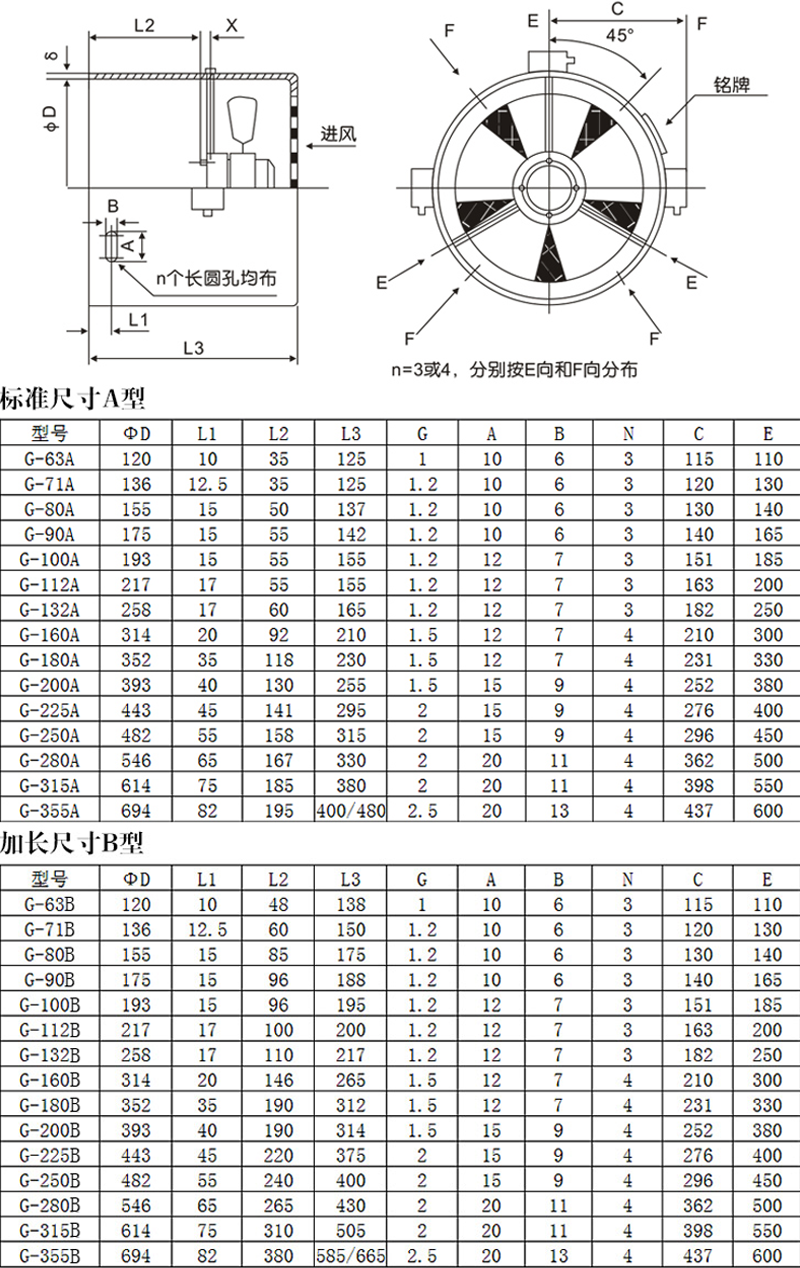

安裝尺寸
以下數據均為人工測量，有一定誤差
The following data are measured manually with certain error

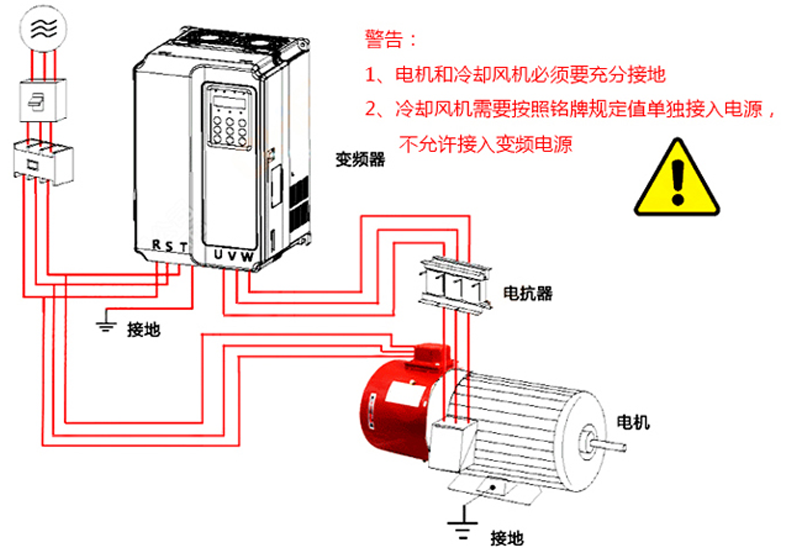

產品接線
請根據下圖的方法接線
Please wire according to the method shown in the figure below

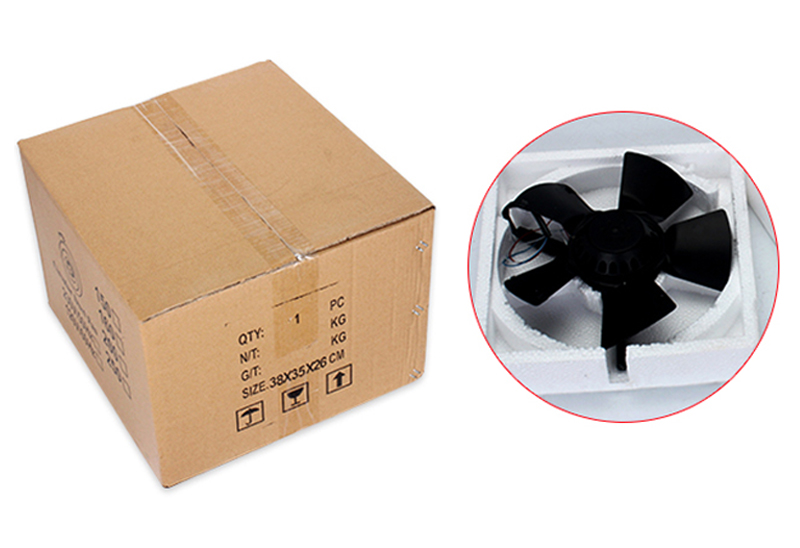

G型變頻電機風機包裝
我們認真做包裝更認真做產品
The cause of the wind direction is not responsible for the problem
雙層加厚蜂窩包裝箱，內含防震泡沫，有效防震防摔，確保貨物無損送達

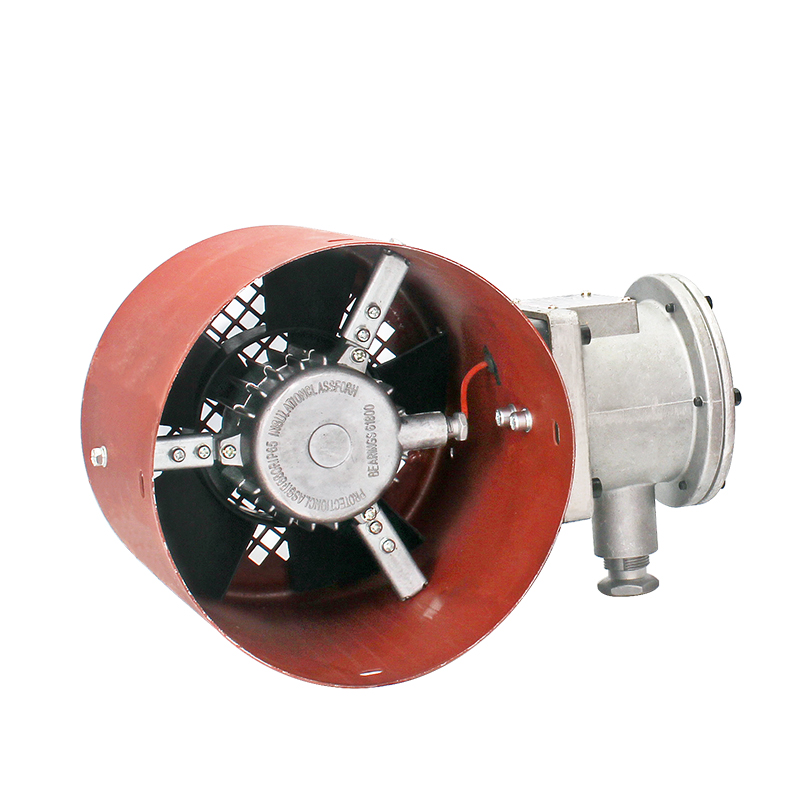

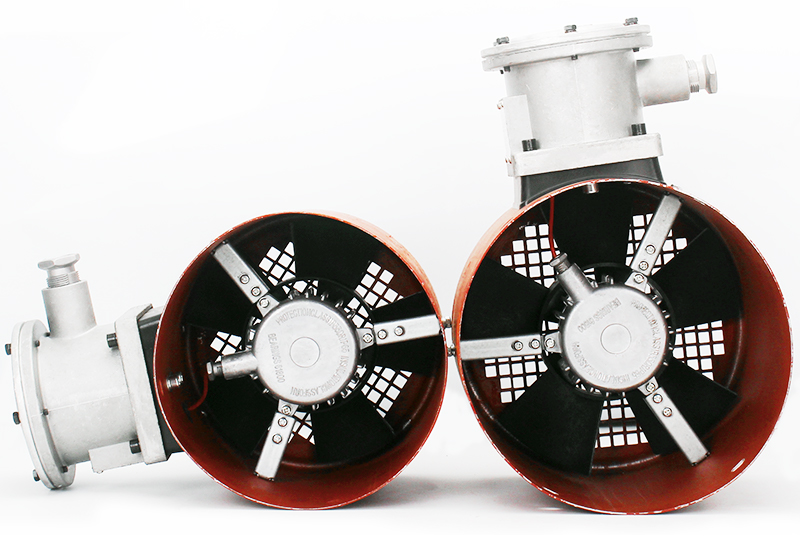

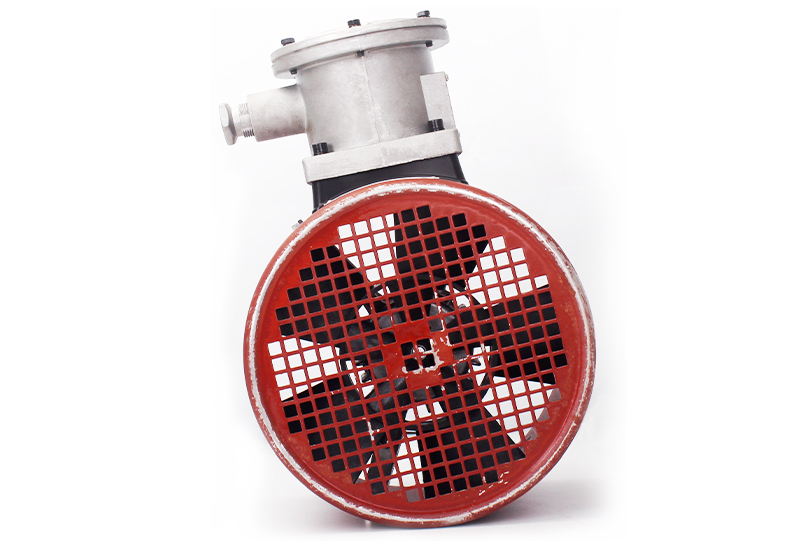

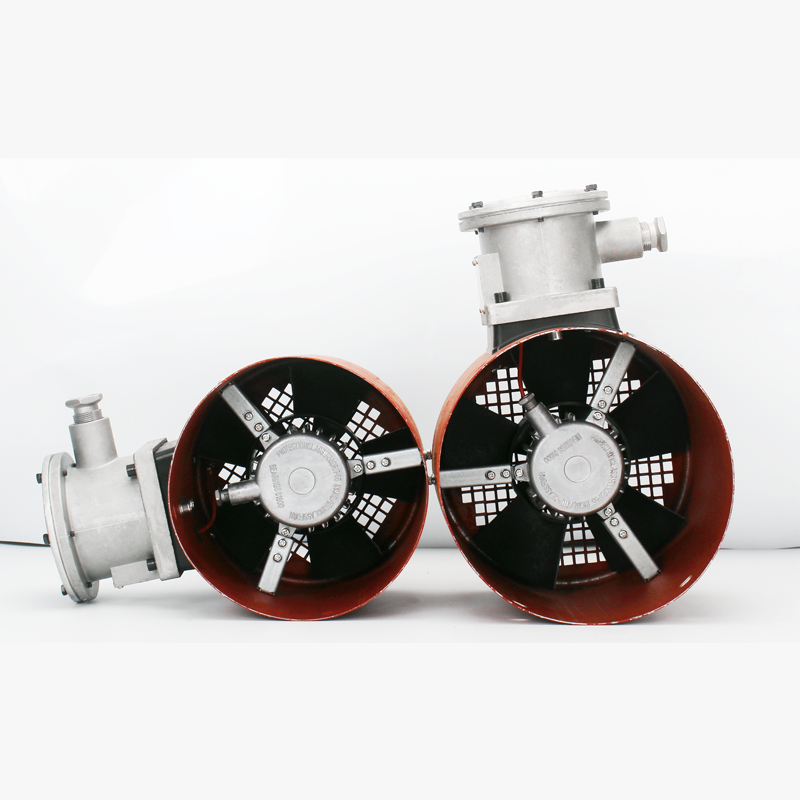

產品展現
正反面展示給您看
Show you the front and back
